Hurricane Series Flagpoles - With M- Winch

HURRICANE SERIES FLAGPOLES - WITH M-WINCH
Internal Halyard Ground Set Cone Tapered Aluminum Flagpoles

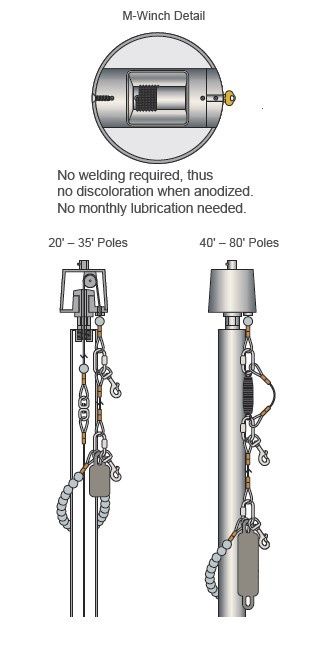

These internal halyard flagpoles contain a winch mounted inside the flagpole shaft, operable only with a removable crank handle. As the  stainless steel cable unwinds from the winch, it passes up through the inside of the flagpole shaft, over the truck sheave to the outside of
the shaft, where the retainer ring provides a sliding anchor. A counterweight, heavily coated with neoprene, attached to the retainer ring, allows the halyard to be lowered for fastening or removing the flag. The winch is gearless and self-locking at any point, eliminating the need
for a separate brake. This direct drive winch provides rapid raising and lowering of the flag with little effort. This design does not require any welding, thus avoiding discoloration when an anodized finish is desired. No monthly lubrication is needed.

STANDARD INTERNAL POLE ACCESSORIES
• Cast aluminum revolving truck with enclosed stainless steel bearings and raceway
• Stainless steel cable assembly
• Deluxe flag arrangement
• Retainer ring and counterweight
• M-Winch system
• Spun aluminum flash collar
• Galvanized steel foundation sleeve
